Atom HS 520/7 Crosshead die cutting machine
With 250 kN (25 t) punching force, 2000 x 750 mm punching area, 750 mm x 750 mm punching plate, 5 - 150 mm punching stroke incl. 12-fold roll holder and roll feed

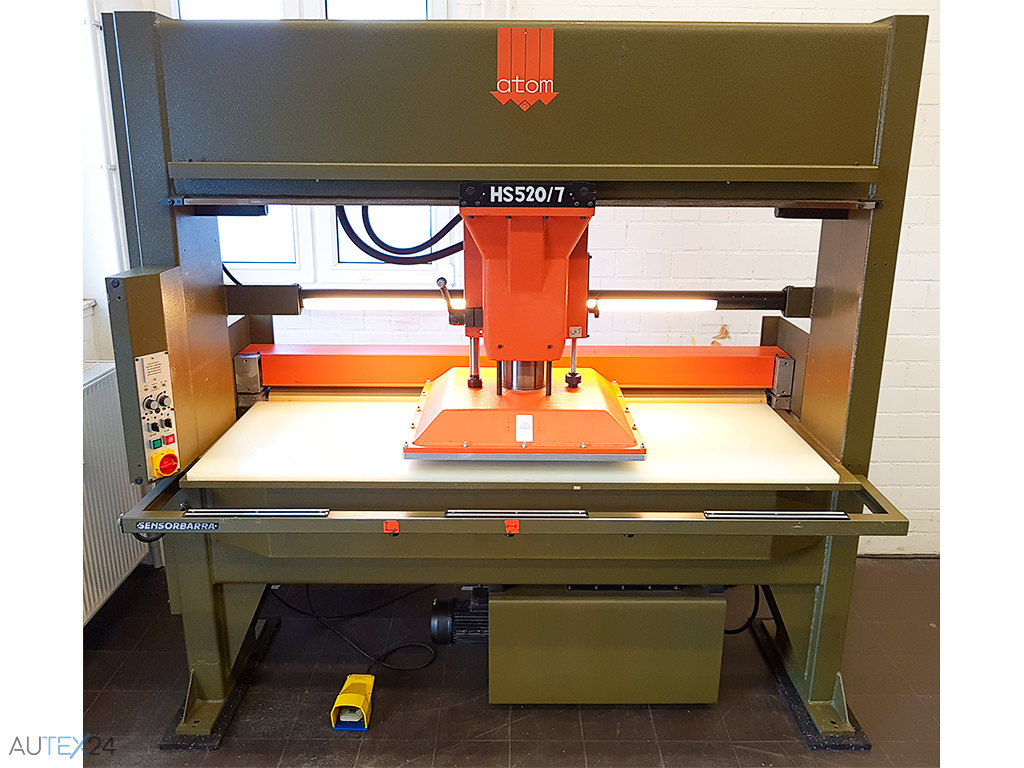

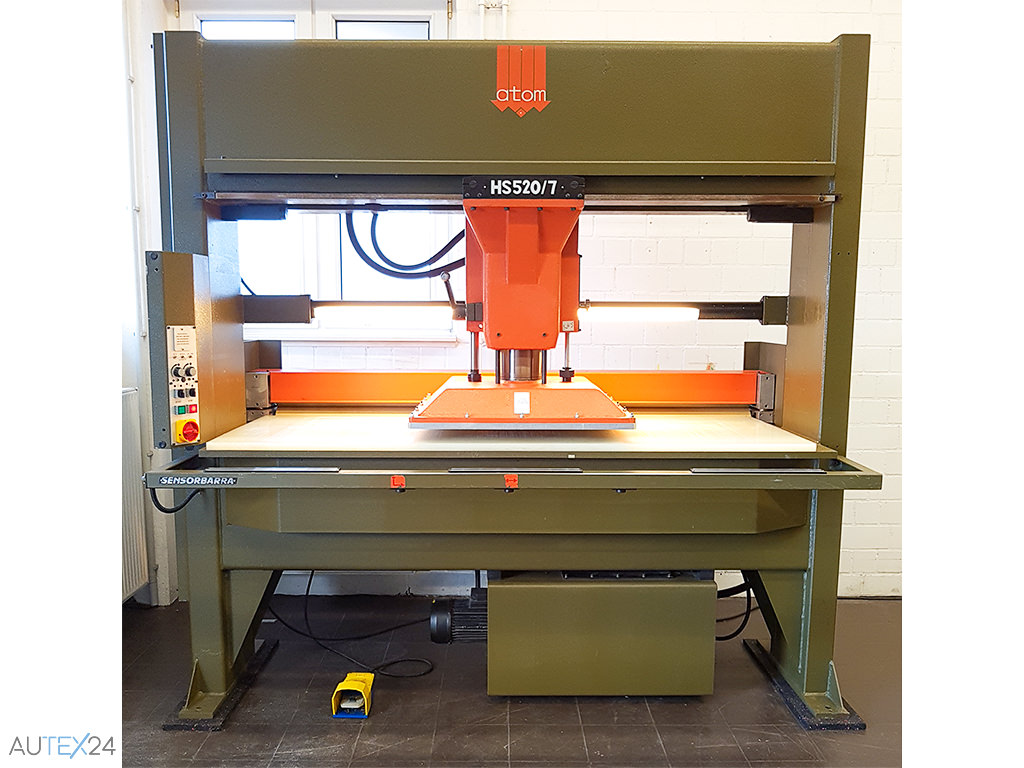

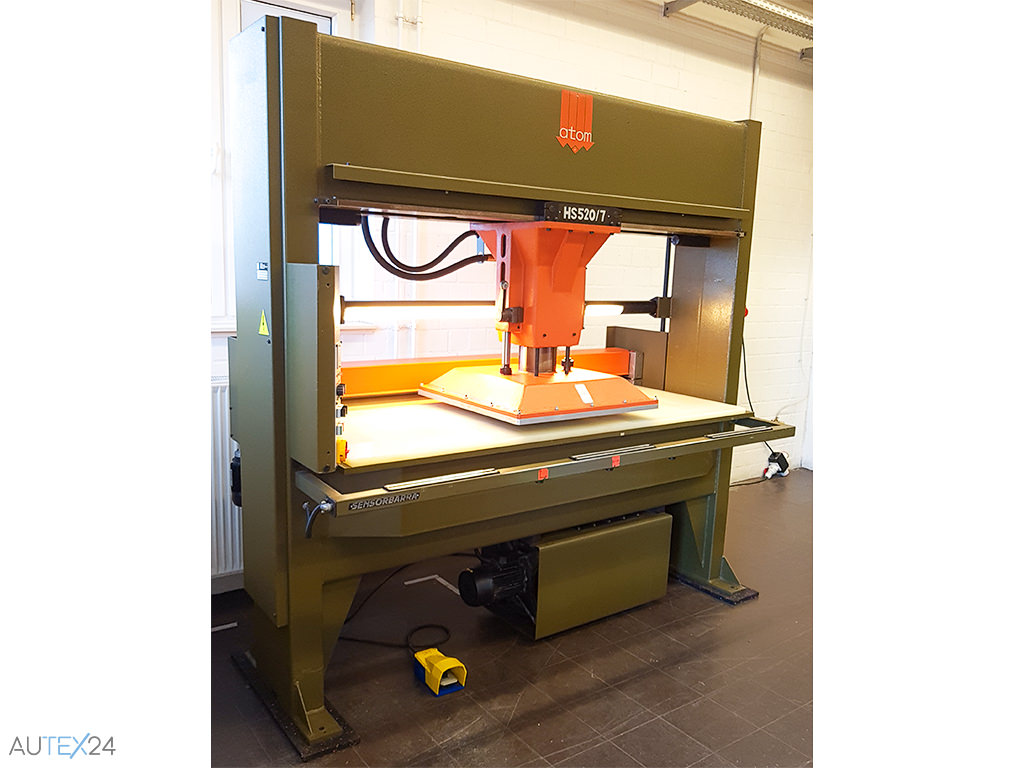

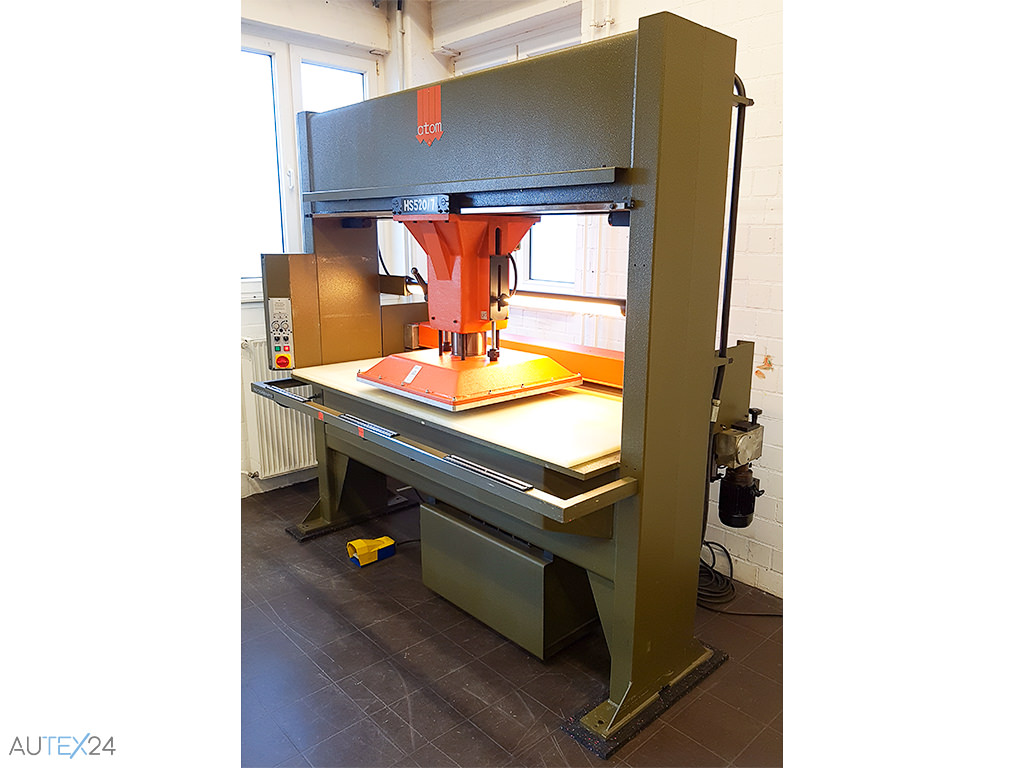

The Atom HS 520/7 cart beam punching machine is in a good used condition, fully functional, cleaned and ready for immediate use. The visual condition can be seen in the attached pictures and videos. An inspection and detailed examination of the purchased item, is expressly desired by arrangement.
The hydraulic cart beam punching machine of the 520 series is one of the most powerful punching machines available on the market. It is particularly characterized by the outstanding speed of the punching cart, low power consumption, high reliability and cutting quality. The large 750 mm x 750 mm punching table is designed to meet the operator's need to work with larger punching dies while centering them properly on the die.

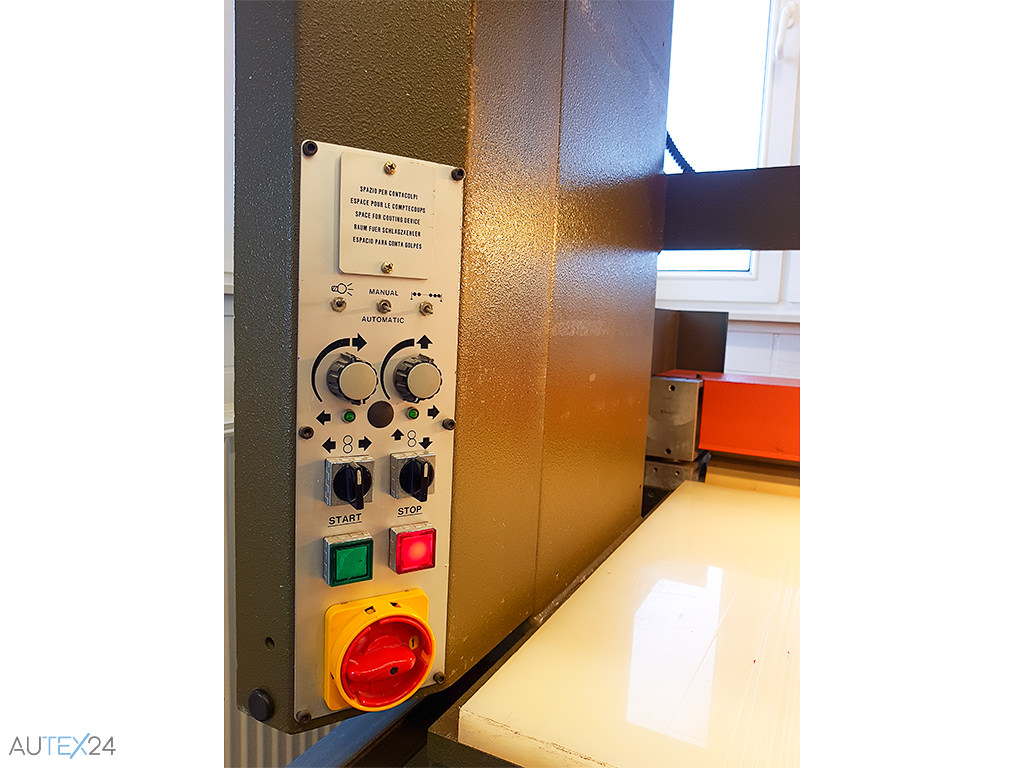

Synchronized controls ensure maximum operator safety and high accuracy of cart travel as well as punching. The unique and powerful dynamic braking system stops the punching cart within the shortest possible time, prevents wear of the motor gearbox housing, enables easy maintenance and ensures maximum reliability.
It is used for punching flat parts with single or multiple dies, for both single-layer and multi-layer punching operations. Its range of application is therefore very wide, making it suitable for use in many industries. The 520/7 cart beam punching machine has a punching force of 25 tons, making it particularly suitable for punching with large punching dies and for high-strength materials.
Thanks to the high punching force and the large punching plate, it is suitable for all production needs of many different industries and applications. It is used in the mass production of leather goods, as well as for die-cutting a wide range of materials in industry, from gaskets to foam and composite materials. It can be used to die-cut materials such as leather, rubber, imitation leather, packaging, labels, paper, tapes, textiles, cork, nonwovens, felt, sponges, gaskets, laminates, abrasives, carpets, electronic components, foams, automotive accessories such as soundproofing parts, and more.

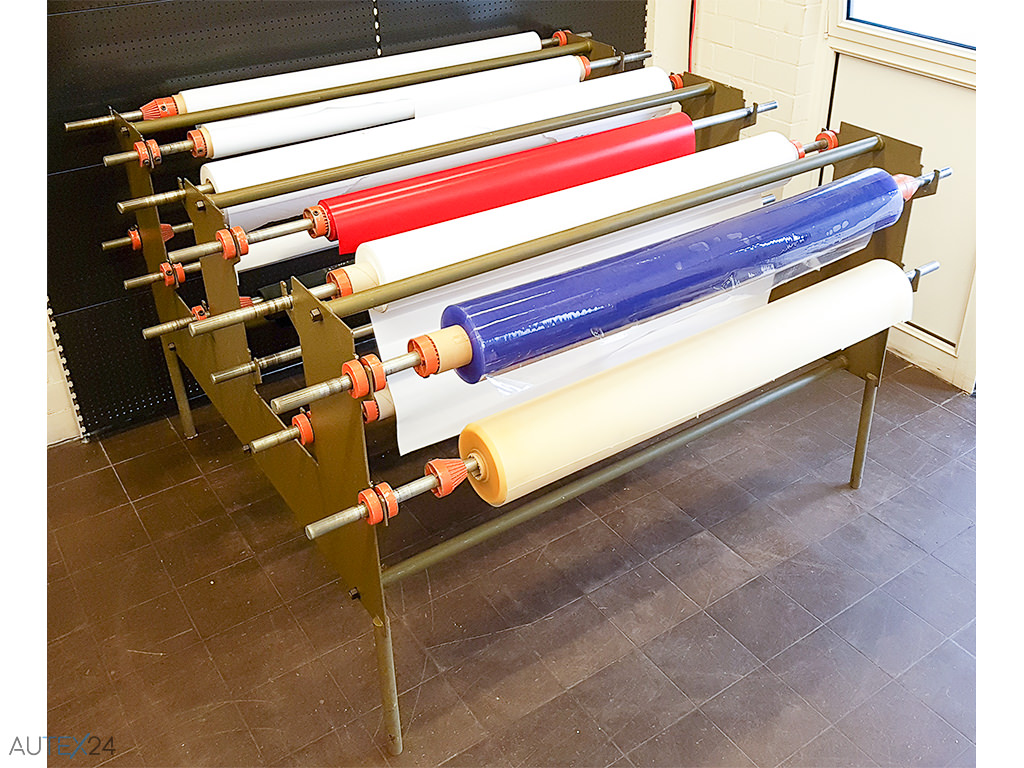

To optimize productivity, the cart beam die cutter is equipped with a 12-slot roll holder for roll stock and a roll feed.
The Atom HS 520/7 cart beam punching machine can be changed over to different punching tools and materials in the shortest possible time and without tools.

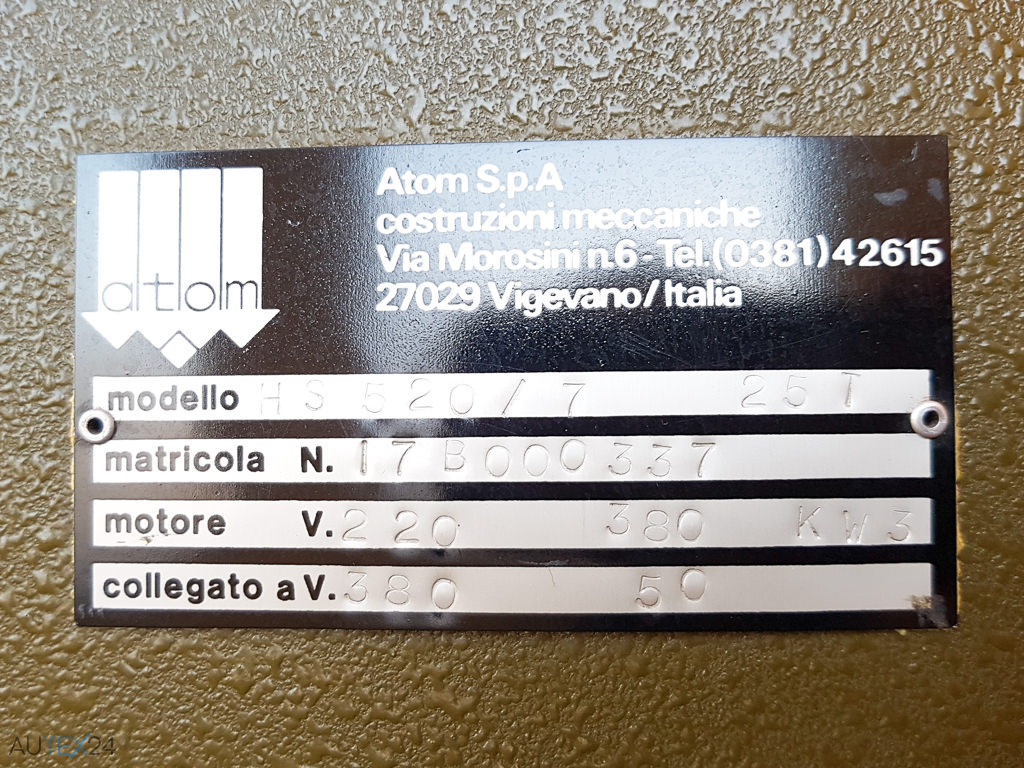

| Hersteller: | Atom |
|---|---|
| Typ: | HS 520/7 |
| Klasse: | Karrenbalkenstanze |
| Baujahr: | 1998 |
| Arbeitstisch (Länge x Breite) [mm]: | 2000 x 750 |
| Stanzkraft [kN]: | 250 |
| Druckteller [mm]: | 750 x 750 |
| Stanzhub [mm]: | 5 - 150 |
| Durchgang [mm]: | 188 |
| Anschlussspannung: | 380 V Wechselstrom (AC), 3-Phasen, 50 Hz |
| Bemessungsleistung [kW]: | 3 |
| Geräuschemission dB [A]: | 70 |
| Abmessungen (Länge x Breite x Höhe) [mm]: | 2380 x 1660 x 2300 |
| Nettogewicht [kg]: | 2190 |
