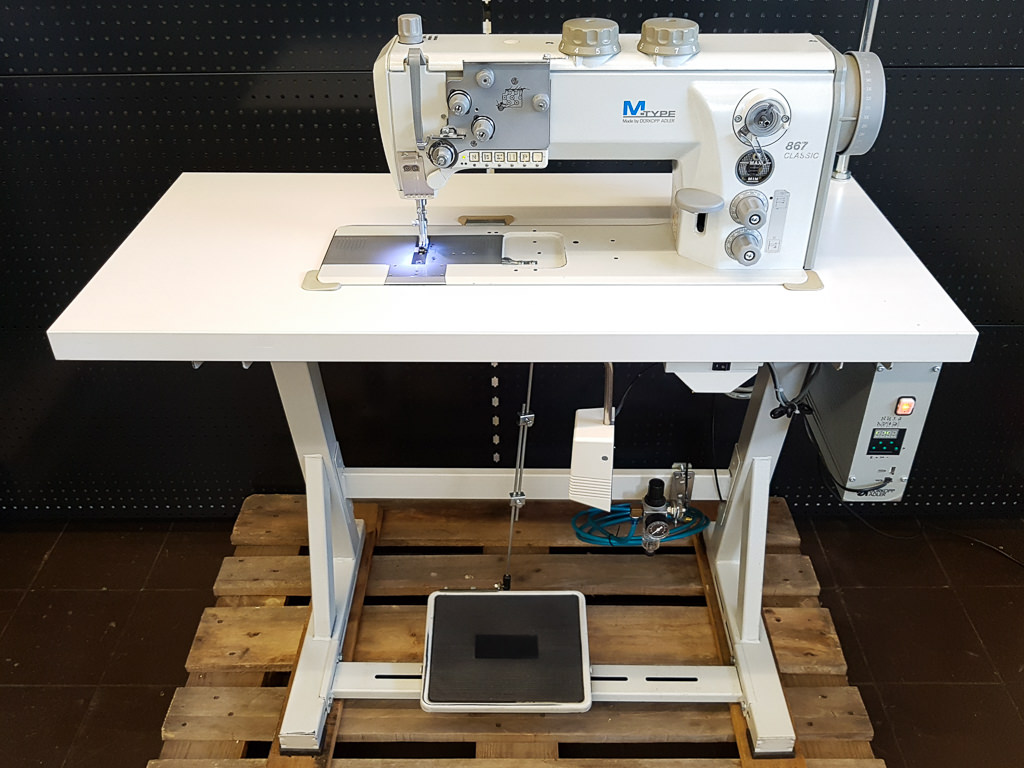

Dürkopp Adler 867-190342 Flat bed sewing machine
Complete on frame with triple feed, oversized XXL vertical hook with 70 % increased bobbin thread capacity, automatic sewing foot lift, automatic seam backtacking, thread trimmer, oil warning indicator, LED sewing light, 2 preselectable stitch lengths as well as 2 preselectable top feed stroke settings, additional thread tension, a powerful Efka DC 1550 servo-top motor with 230 V / 670 W incl. control and operating panel, needle positioning and forward and reverse sewing function

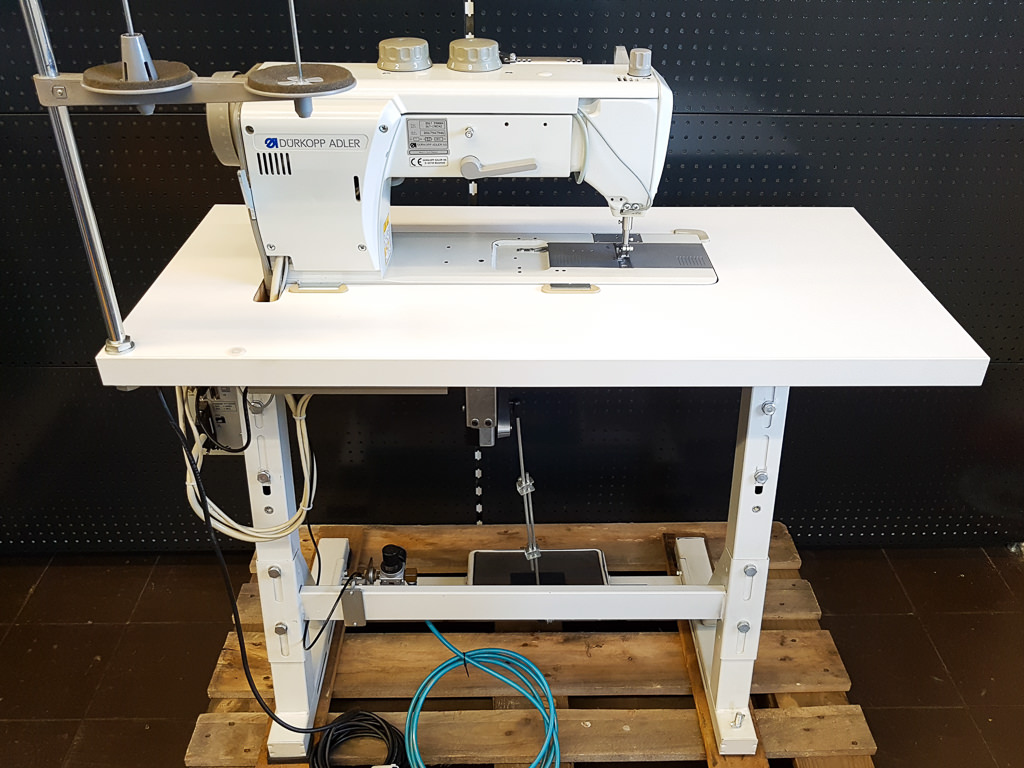

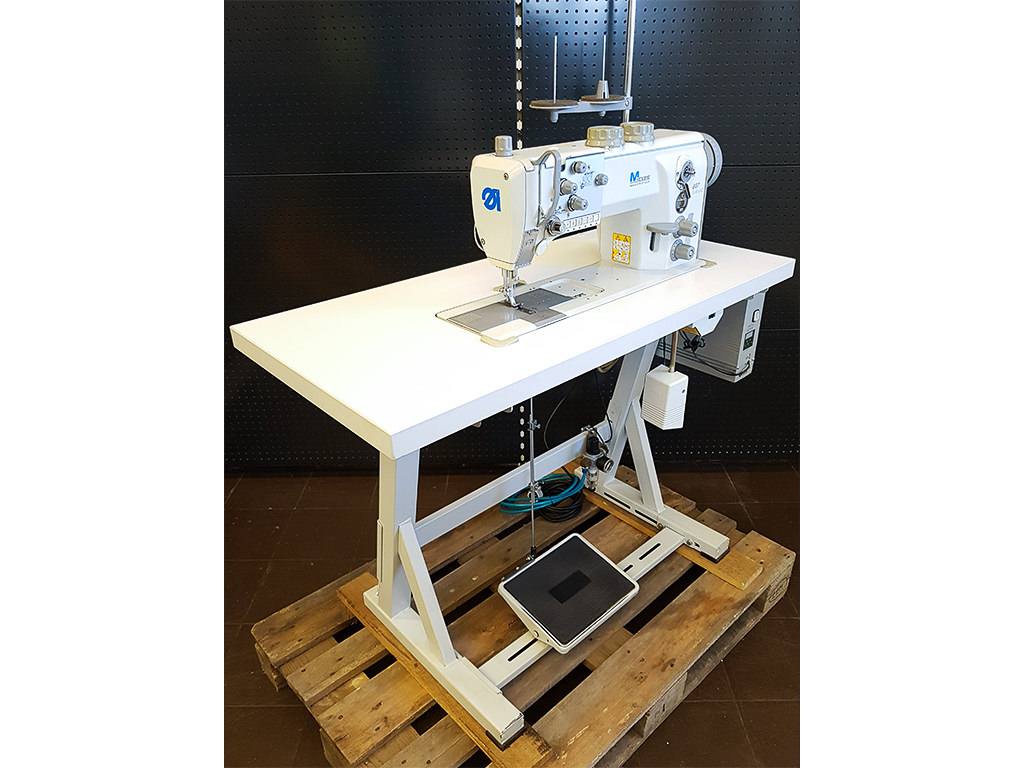

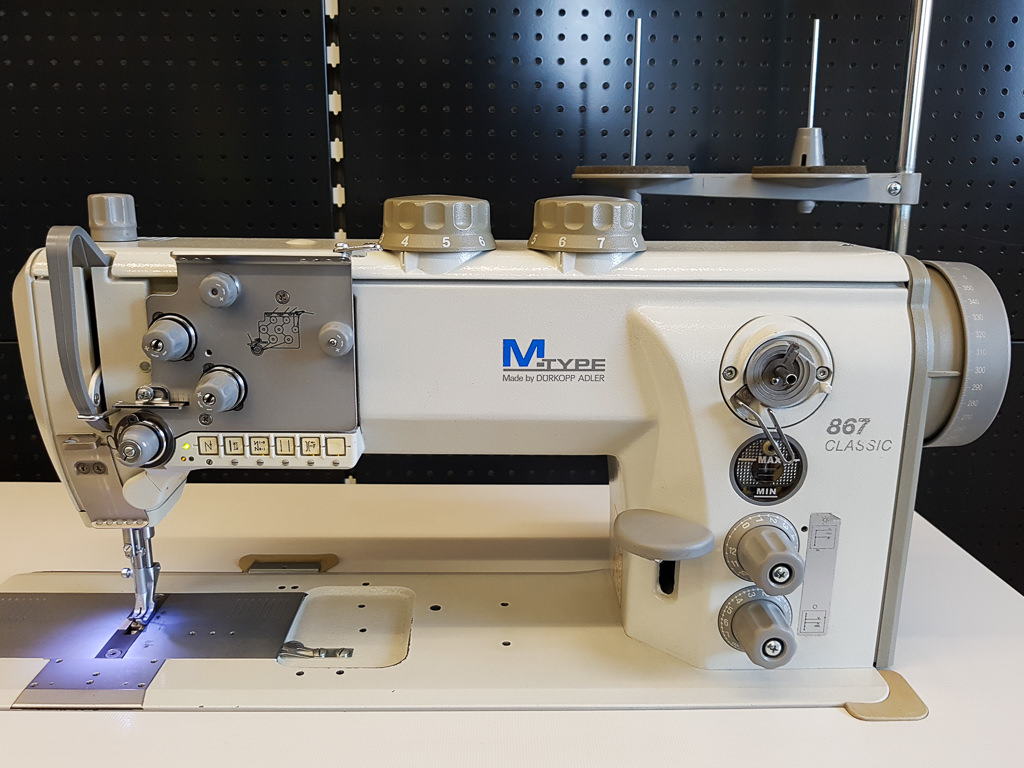

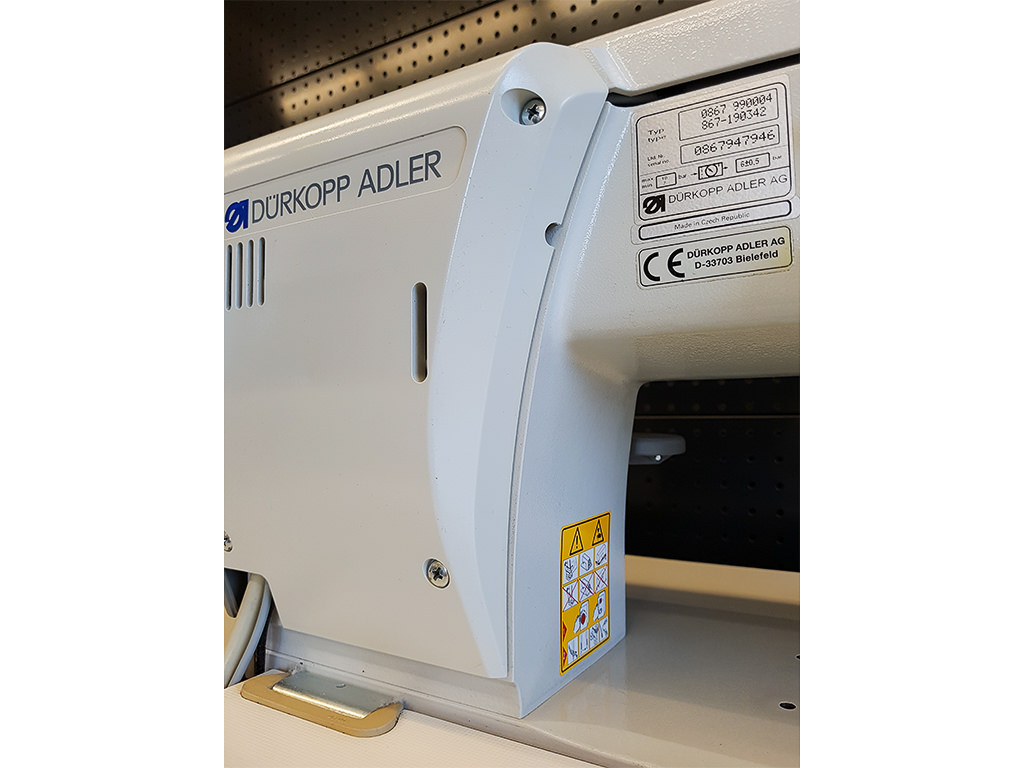

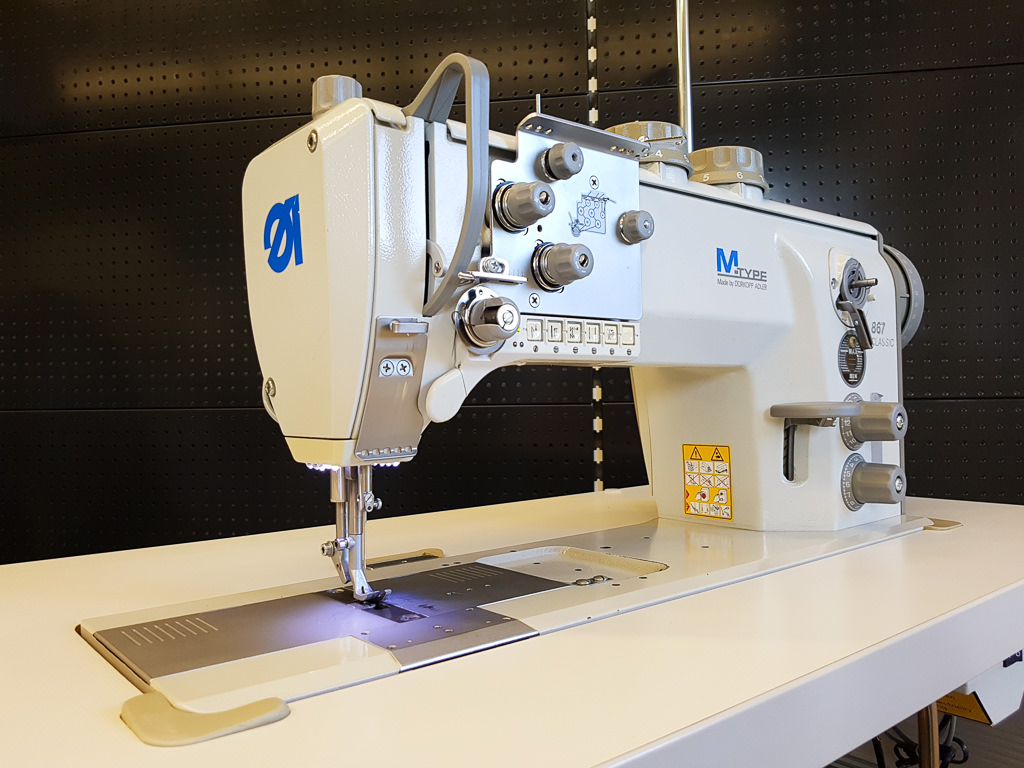

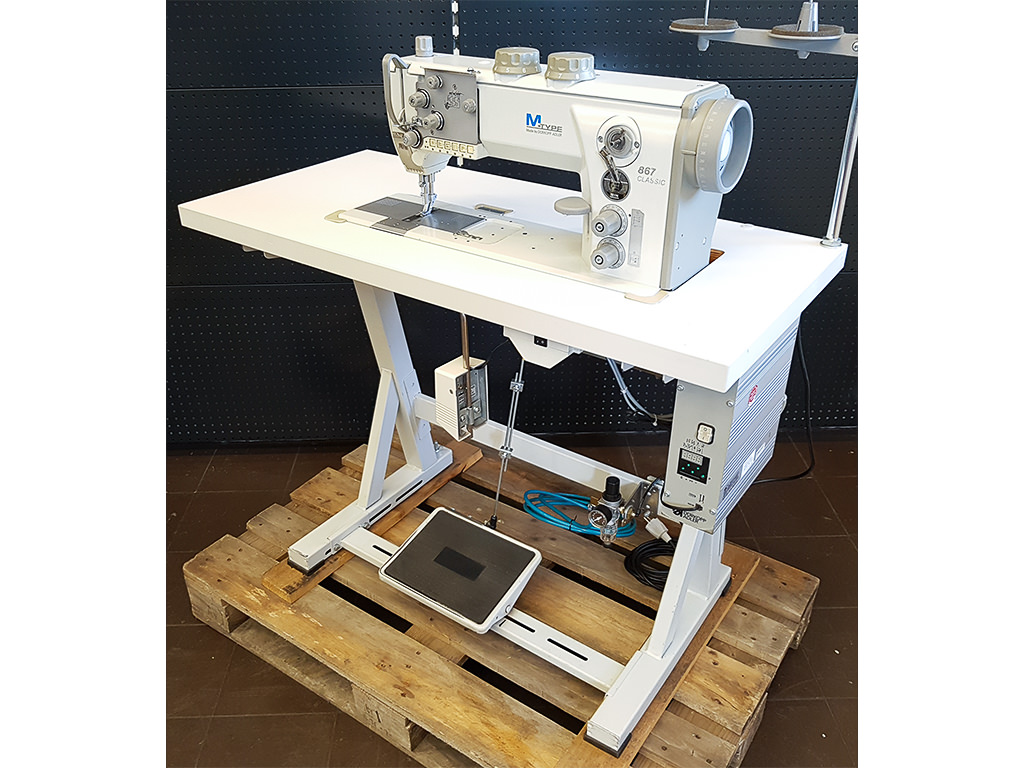

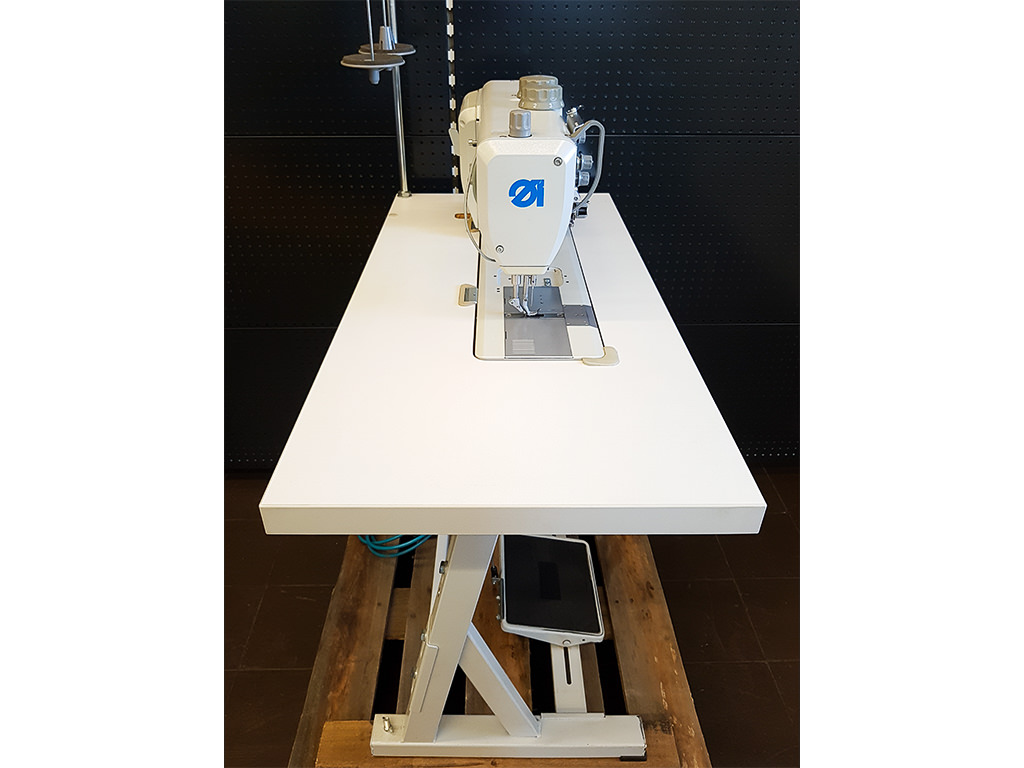

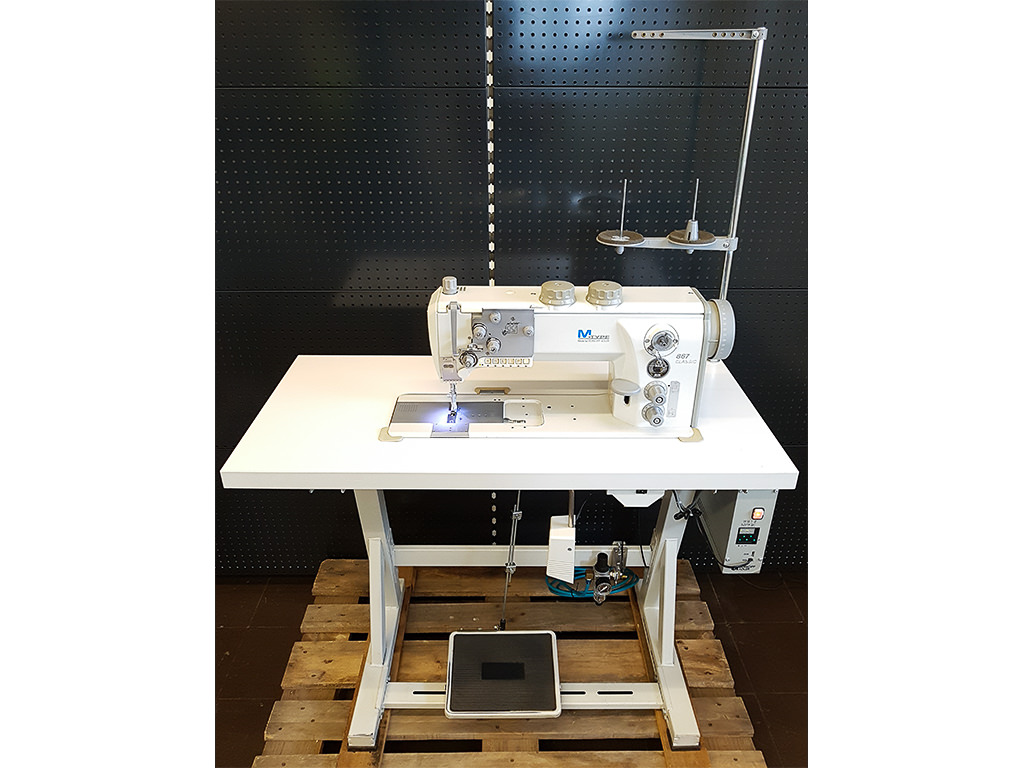

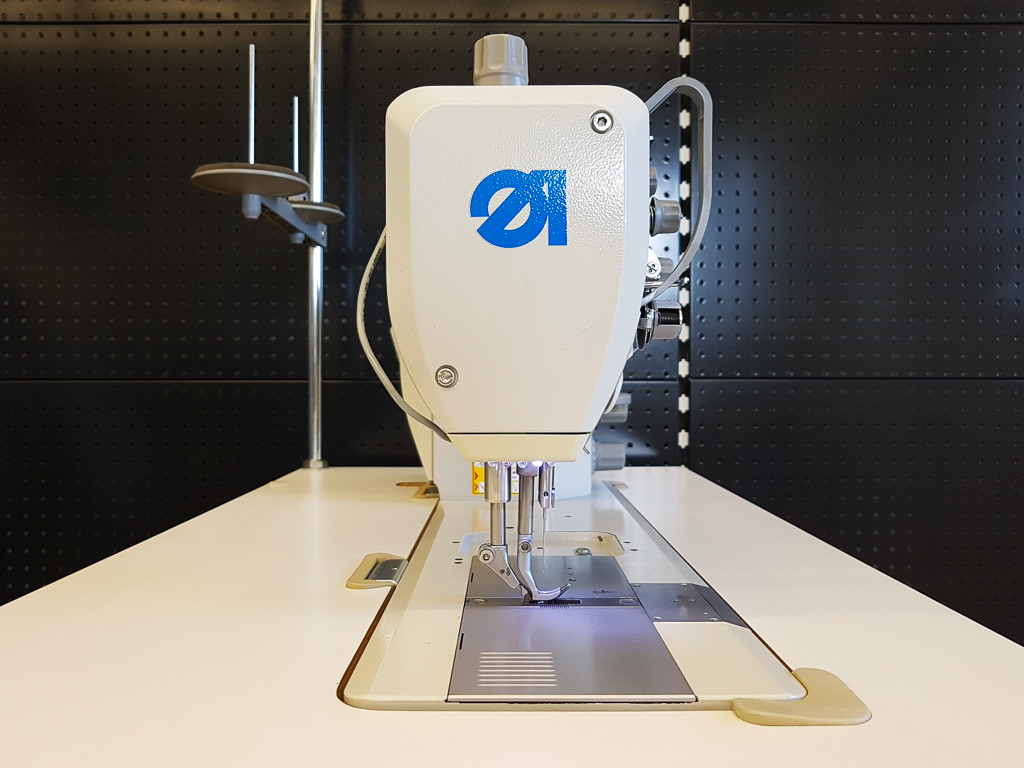

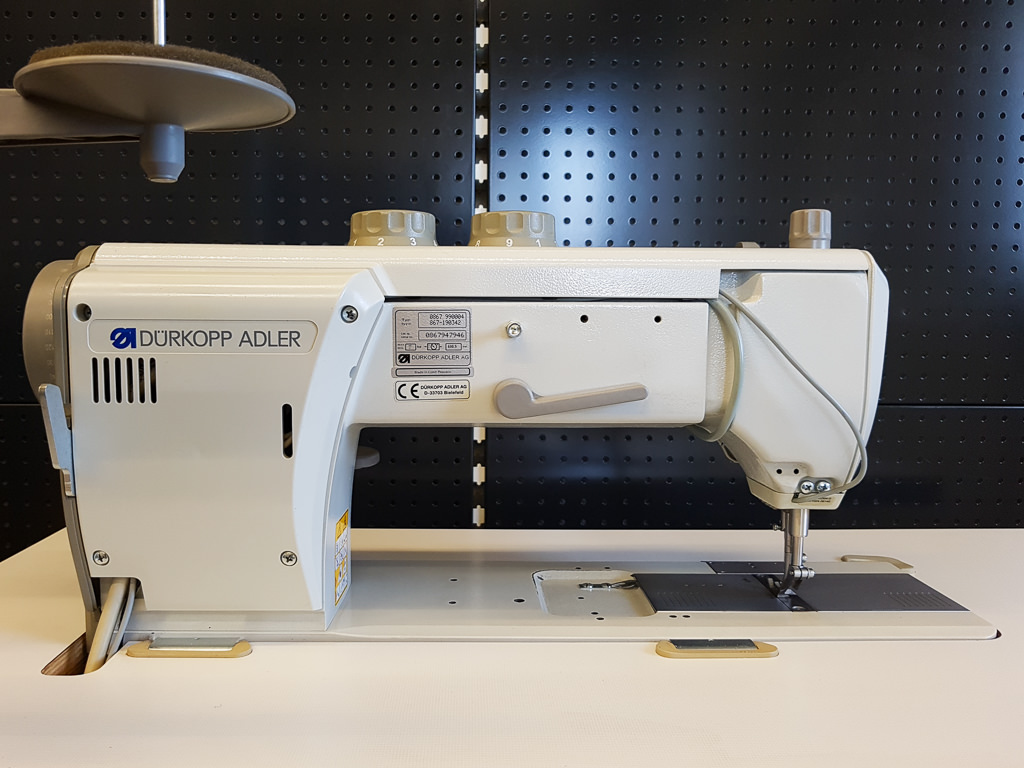

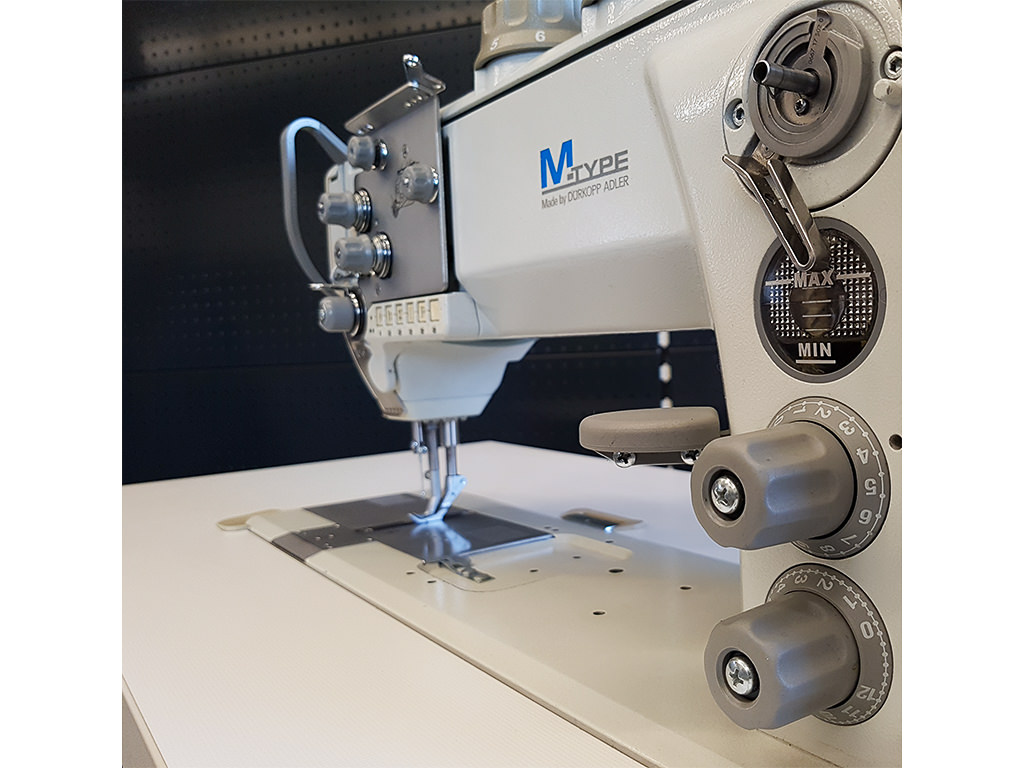

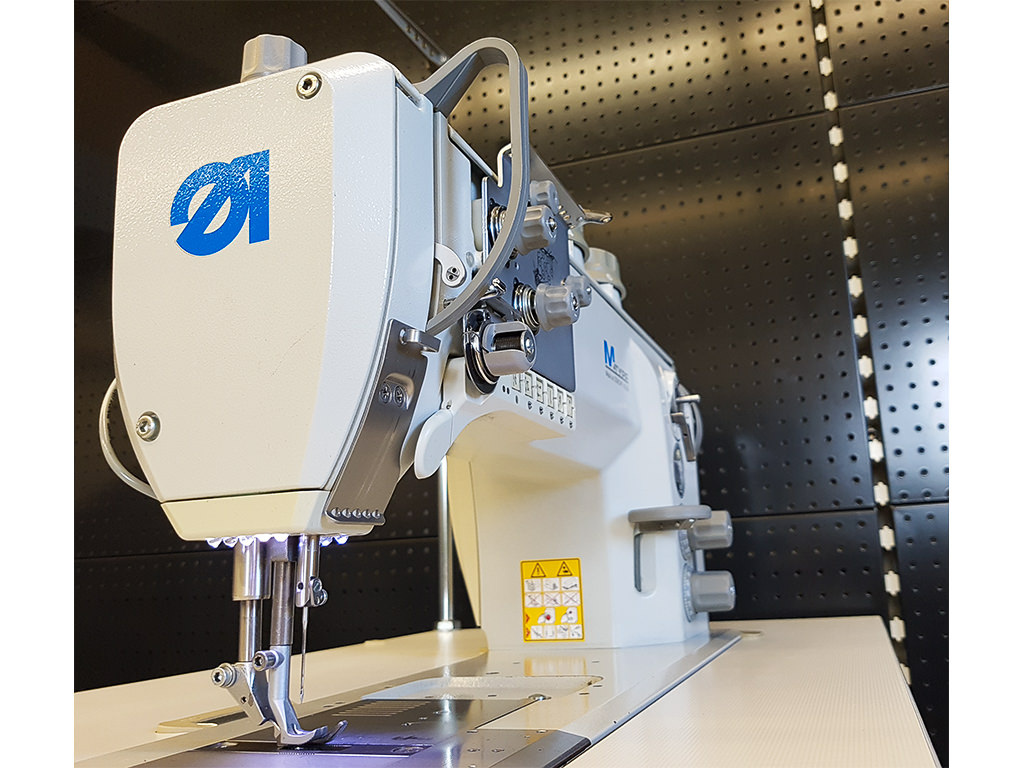

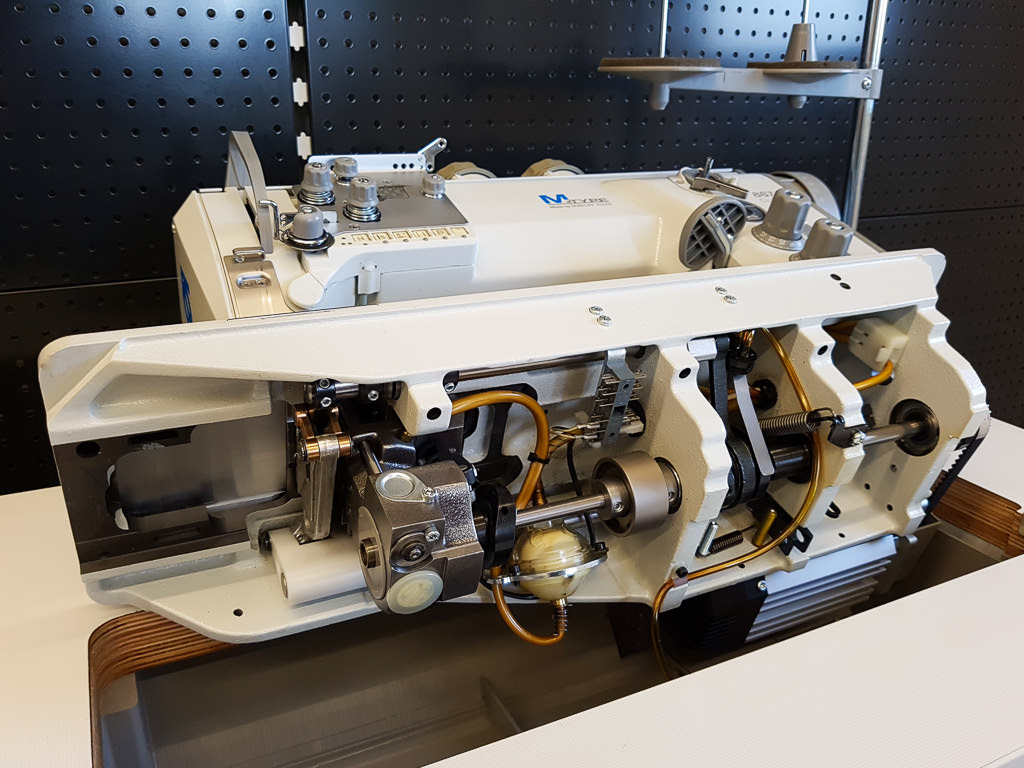

The Dürkopp Adler 867-190342 Classic Goldline flatbed sewing machine is in a good used condition, fully functional, cleaned and ready for immediate use. The visual condition can be seen in the attached pictures and videos. An inspection and detailed examination of the purchased item, is expressly desired by arrangement.
It has a powerful original Efka DC 1550 servo-top motor with 230 V / 670 W including needle positioning. The many automatic functions and a wide range of additional equipment make the work much easier and ensure a better sewing result.
It is equipped with automatic presser foot lift, integrated second stitch length, integrated second thread tension, quick stroke adjustment, automatic backtacking, thread trimmer, oil warning indicator and an oversized XXL vertical hook Furthermore, the 70% increase in bobbin thread capacity means that the number of bobbin changes can be almost halved.
The single-needle lockstitch flatbed machine has a high pull-through force due to top feed with alternating feet and needle feed. This guarantees smooth feed and a neat seam pattern, even when processing heavy materials.
The high top feed stroke of 9.0 mm enables problem-free processing of thick materials and effortless overstitching of cross seams. With a passage of 20.0 mm, voluminous materials can also be easily inserted/removed.
The Dürkopp Adler 867-190342 Classic Goldline is very robust and durable in its construction. With suitable attachments and additional equipment, it is suitable for many sewing operations, such as piping work, zipper work or binding work.
The machine can be used to process different materials, such as leather, imitation leather, felt, PVC, canvas, etc. pp. For the reason, it is used in many different professions such as cobbler, shoemaker, bag maker, fine bag maker, saddler, car saddler, upholsterer, bookbinder, Riemer and so on.
| Hersteller: | Dürkopp Adler |
|---|---|
| Typ: | 867-190342 Classic Goldline |
| Klasse: | Flachbettmaschine |
| Transport: | Dreifachtransport, Untertransport, Nadeltransport und alternierender Fuß-Obertransport |
| Nähgut: | M = Mittelschweres Nähgut, MS = Mittelschweres bis schweres Nähgut |
| Nadeln: | Eine Nadel |
| Stichtyp: | Doppelsteppstich 301 |
| Greifer: | Vertikalgreifer übergroß XXL |
| Stichlänge max. [mm]: | 12 |
| Stiche pro Minute max. [min-1]: | 3400 |
| Nadelsystem: | 134-35 |
| Nadelstärke [Nm]: | 90 - 180 |
| Synthetik / Umspinnzwirn max. [Nm]: | 80/3 - 10/3 |
| Hubhöhe der alternierenden Nähfüße max. [mm]: | 9 |
| Durchgang beim Nähen max. [mm]: | 10 |
| Durchgang beim Lüften max. [mm]: | 20 |
| Nähfußlüftung: | Automatisch |
| Steuerung für zwei Stichlängen: | Ja |
| Nahtverriegelung: | Automatisch |
| Fadenabschneider: | Ja |
| Fadenklemmeinrichtung: | Ja |
| Zusatzfadenspannung: | Automatisch |
| Arbeitsleuchte: | Integrierte LED-Leuchte |
| Öl-Warnleuchte: | Ja |
| Anschlussspannung: | 230 V Wechselstrom (AC), 1-Phasen, 50/60 Hz |
| Bemessungsleistung [kW]: | 0,67 |
| Luftdruck [bar]: | 6 |
| Abmessungen (Länge x Breite x Höhe) [mm]: | 1050 x 550 x 1150 |
| Nettogewicht [kg]: | 120 |
