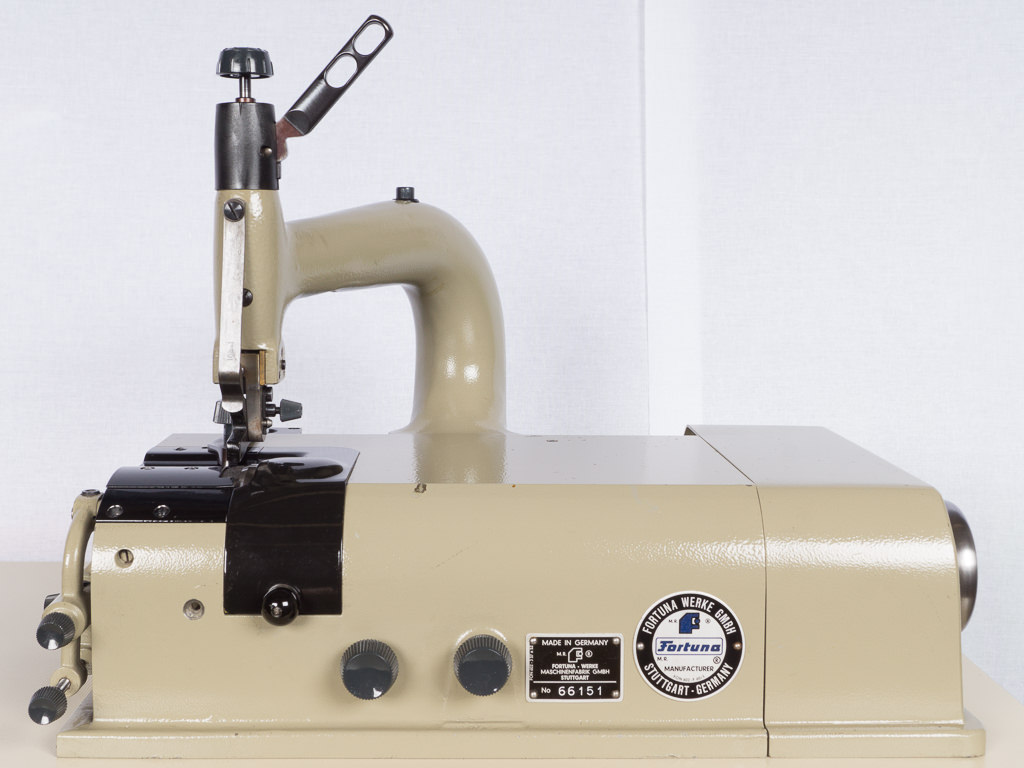

Fortuna 50 PU-AO Leather skiving machine

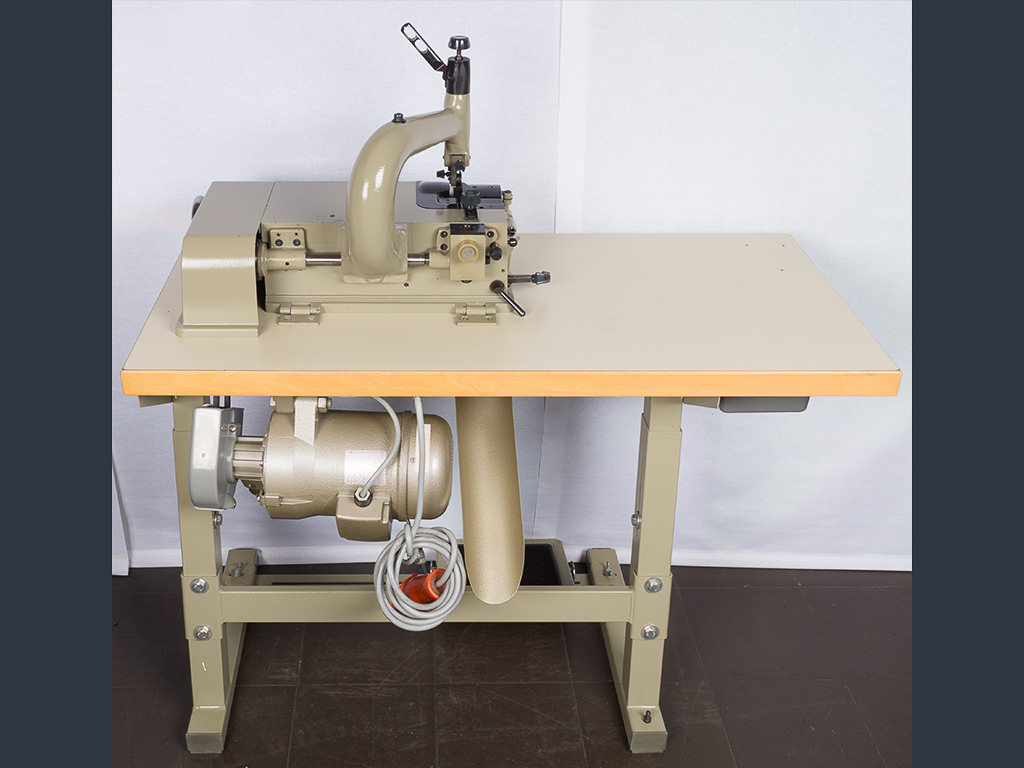

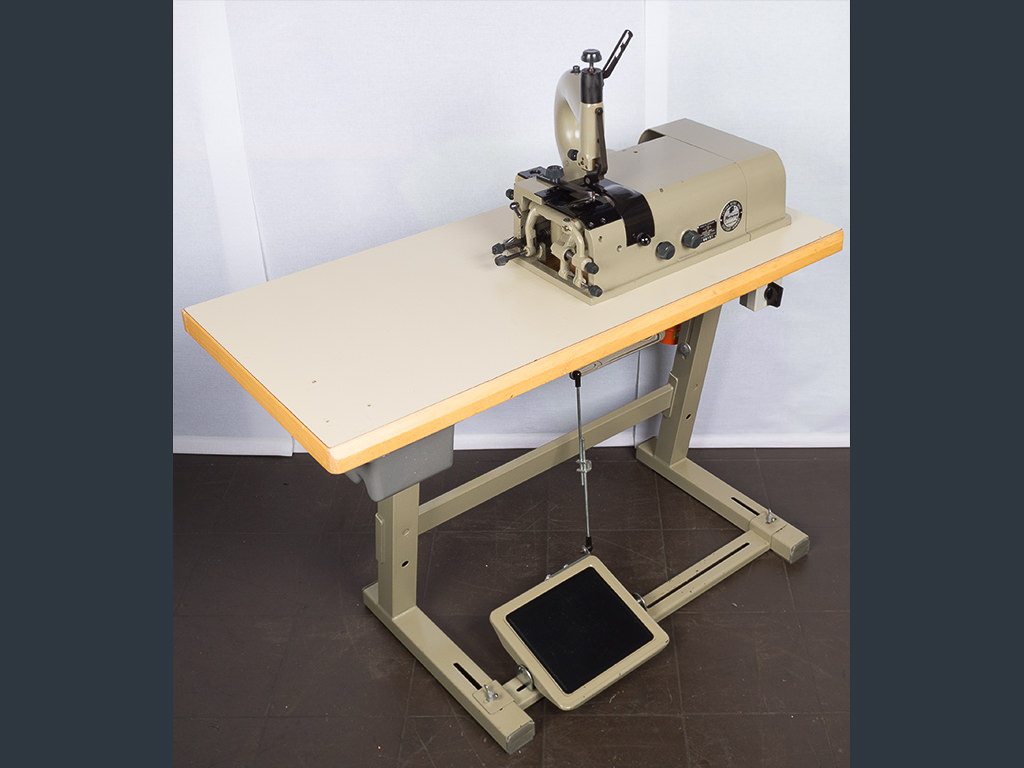

Completely mounted on a frame for working widths up to 50 mm, including driven guide roller with precisely adjustable feed speed via built-in coupling, automatic suction system incl. chip box and a powerful 380 V / 550 W high-voltage motor

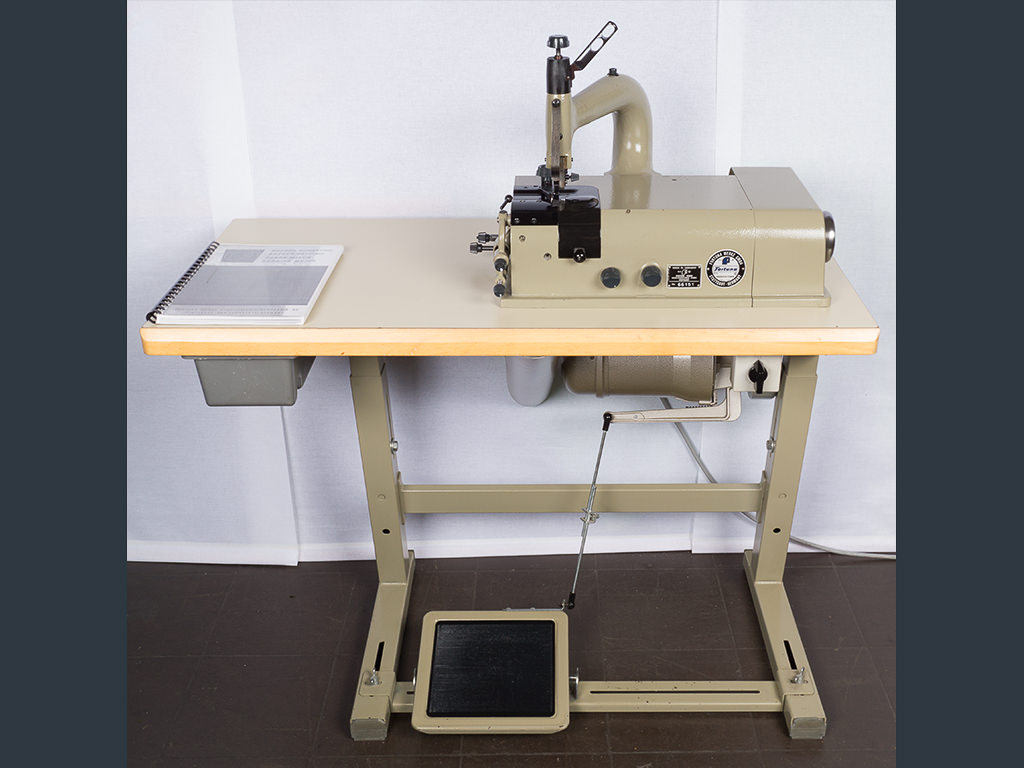

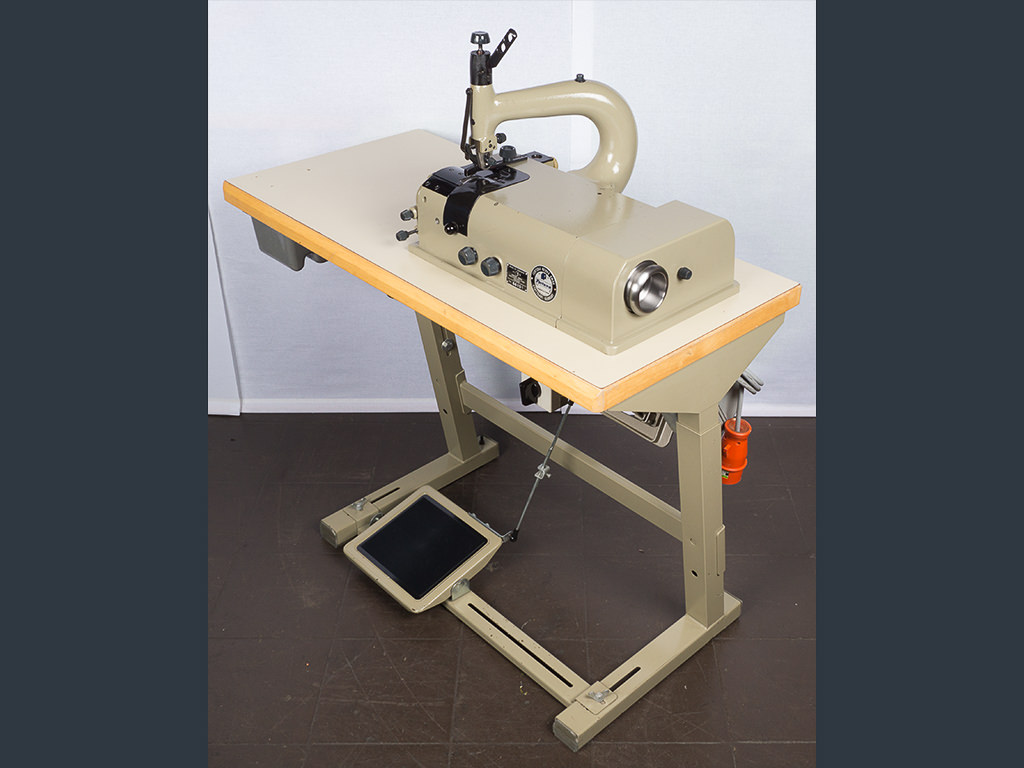

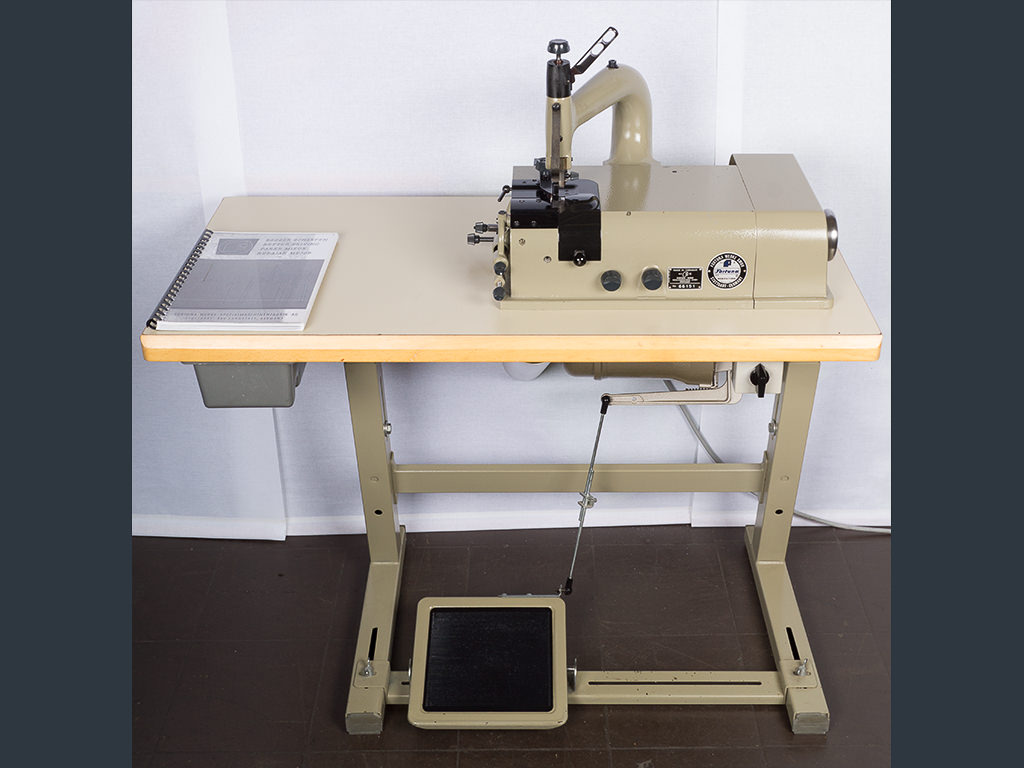

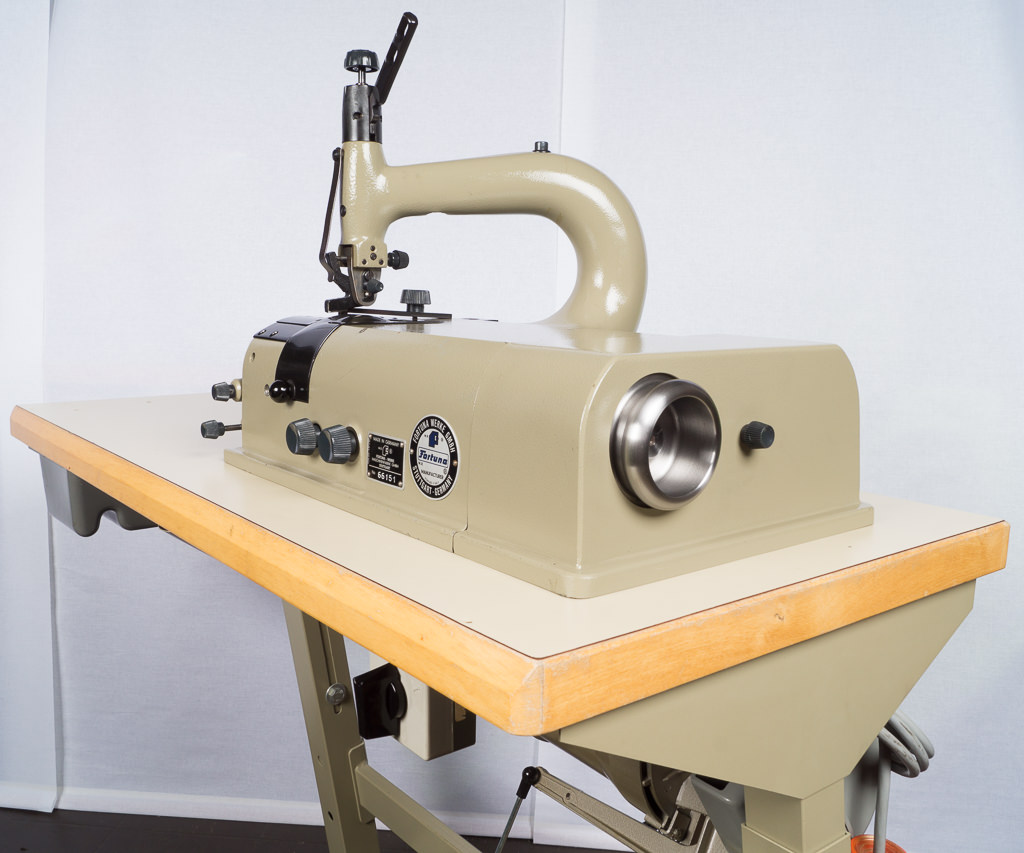

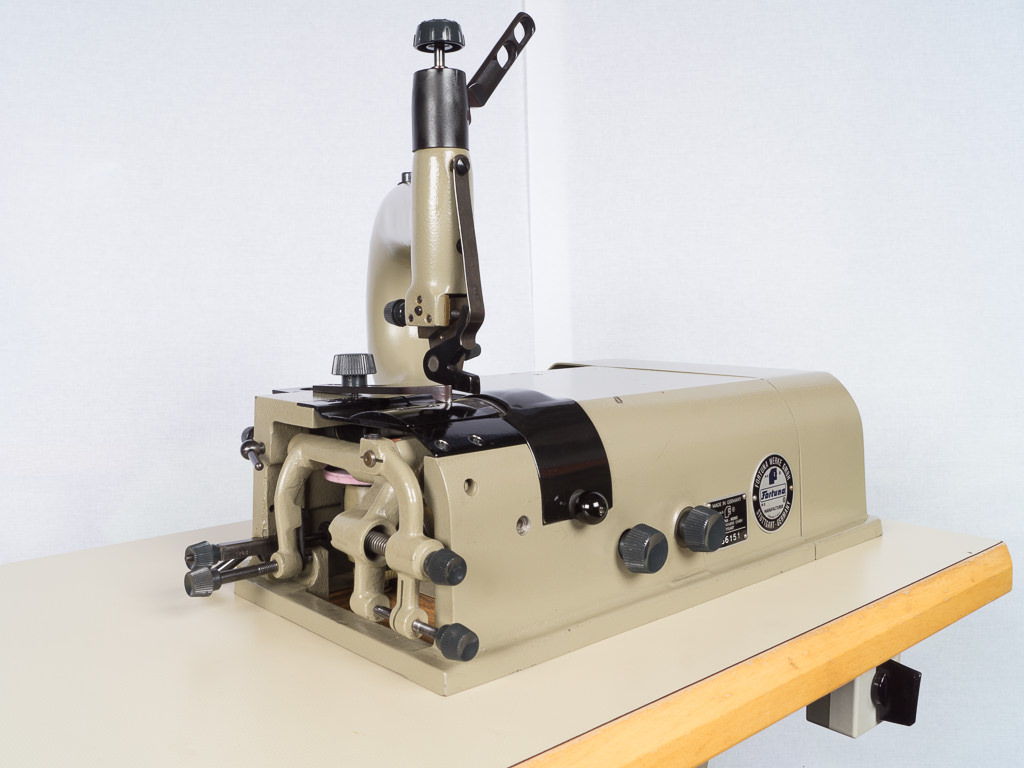

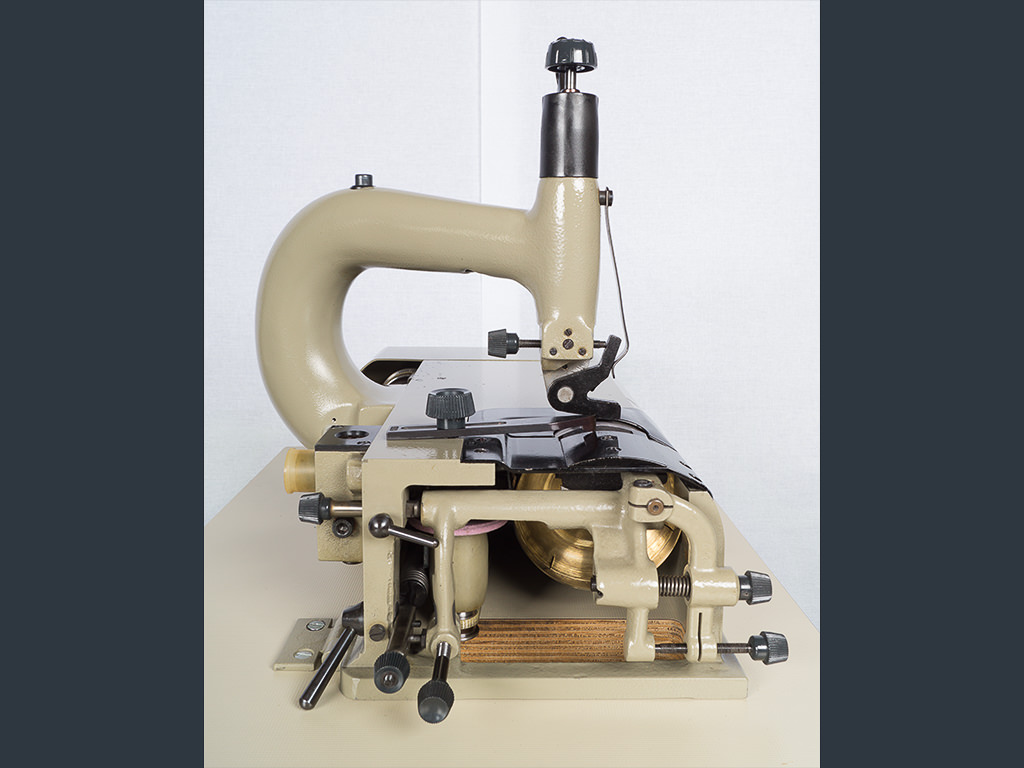

The Fortuna 50 PU-AO leather skiving machine is in good used condition, fully functional, cleaned and ready for immediate use. The optical condition can be seen in the attached pictures and videos. An inspection and detailed examination of the purchased item, is expressly desired by arrangement.
The model 50 PU-AO is a universal leather skiving machine with clutch transmission, which is popular in the shoe and leather goods industry as well as in orthopedics.

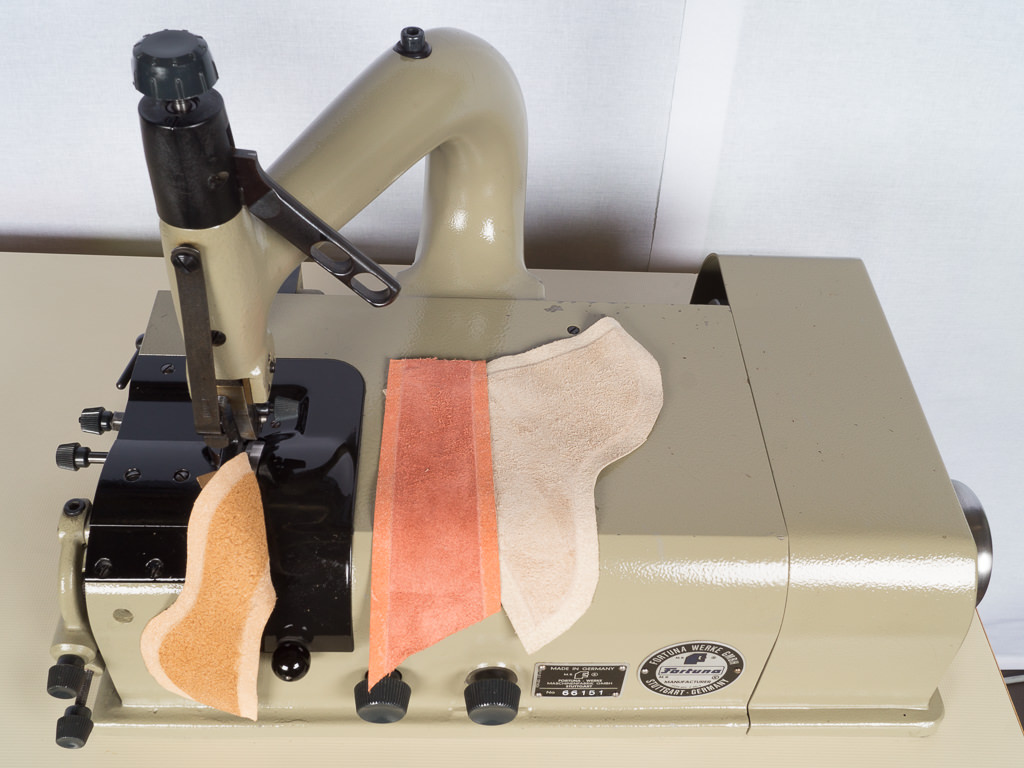

It can be used to thin materials with extreme precision. By beveling the edges of workpieces of any shape and size, it is possible to obtain perfect butt joints without thickening the workpiece at the joint. It can also be used to cut grooves to facilitate the bevelling of the edges of elastic or certain rigid materials.
With its precise and robust construction, it is designed for samples, small and medium series, mechanically very stable, flexible to set up, easy to handle and can be used quickly and easily for many different sharpening and splitting operations, such as bevel cutting, bevel cutting with bow groove or parallel cutting.

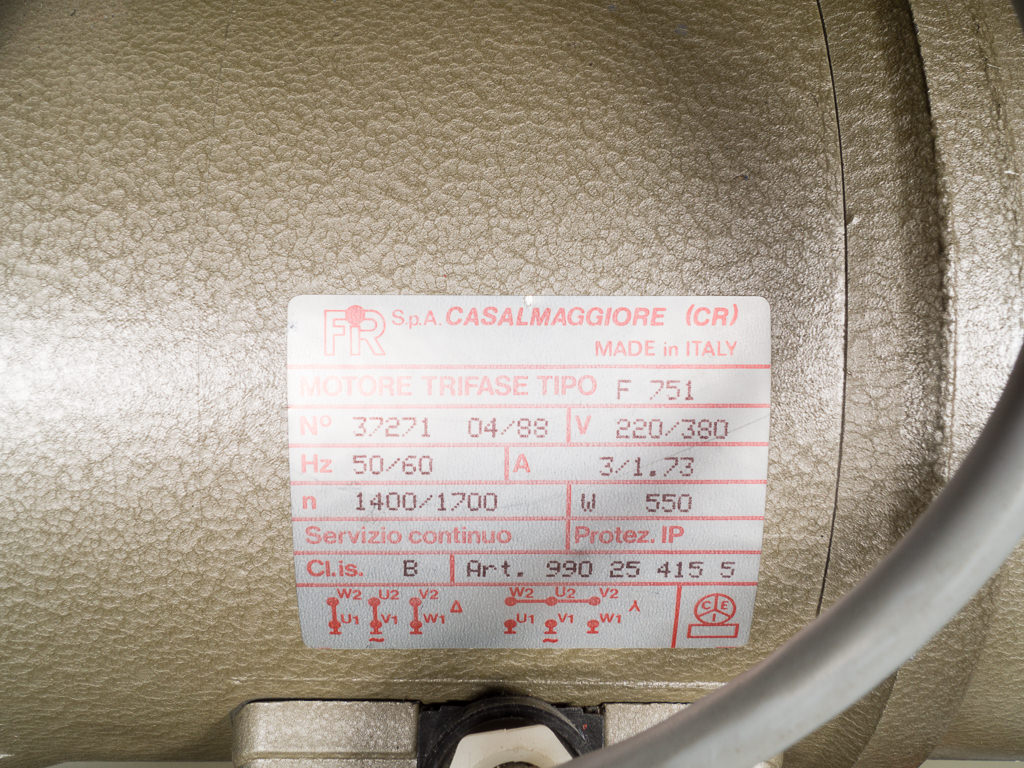

It has a powerful 380 V / 0.550 KW high-voltage motor. Therefore, equipped with the appropriate presser feet and transport rollers, it is suitable for processing both thin and thick materials.
The speed of the feed roller is infinitely variable via pedal to precisely meter the feed of the material, which simplifies the processing of materials with inside and outside curves. Optimum adaptation of the feed rate to the material and sharpening contour also avoids scrap, increases machine productivity and shortens the teach-in time. Here, the bell blade rotates permanently at full speed for a clean sharpening result.
The sharpening and slit width can be continuously adjusted between 0mm to 50mm.

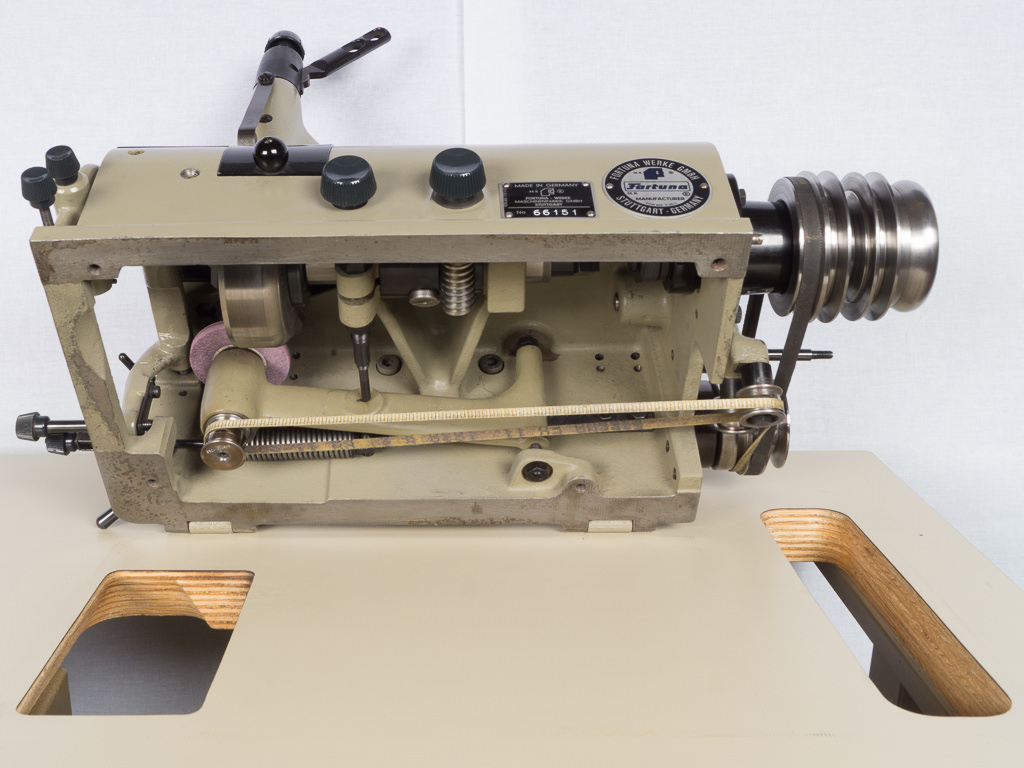

The built-in automatic suction device keeps the inside of the machine clean at all times. The splitting material and the fine dust are collected in the respective containers and can be easily disposed of.
The machine can process different materials such as leather, leather-like materials, artificial leather, felt, rubber, plastic, cork, etc. pp. For this reason, it is used in many different professions, such as shoemaker, bootmaker, bag maker, fine bag maker, saddler, car saddler, upholsterer, bookbinder, Riemer and many others.
| Hersteller: | Fortuna |
|---|---|
| Typ: | 50 PU-RO |
| Schärfbreite [mm]: | 0 - 50 |
| Schärfwinkel: | 0° - 20° |
| Führungselement: | Fuß |
| Vorschub: | Stufenlos per Kupplung regelbar |
| Vorschubgeschwindigkeit [mm/s]: | 0 - 75 |
| Spänebehälter: | Spänerutsche |
| Motordrehzahl [min-1]: | 1680 |
| Anschlussspannung: | 380 V Wechselstrom (AC), 3-Phasen, 50 Hz |
| Bemessungsleistung [kW]: | 0,55 |
| Abmessungen (Länge x Breite x Höhe) [mm]: | 1050 x 550 x 1160 |
| Nettogewicht [kg]: | 90 |
